SYANSPAN Pipe Camera 9″1080P Screen, Sewer Inspection Camera Diameter Cable 9mm&10-200M Optional

SYANSPAN Ø23 mm Ultra-Slim Sewer Inspection Camera – Ultimate Solution for Large-Diameter Pipe DiagnosticsNavigate tight bends and small access points with the SYANSPAN Ø23 mm Ultra-Slim Sewer Inspection Camera, a professional-grade sewer camera designed for DN80–DN600 pipelines. This drain camera combines a micro Ø23 mm camera head with a durable 9mm cable to deliver HD 1080p visuals, eliminating the need for costly excavation or destructive inspections. With its waterproof IP68 rating and robust feature set, this sewer inspection camera is perfect for municipal, industrial, and residential applications, from sewer mains to HVAC ducts.

Product Highlights

• Ultra-Slim Ø23 mm Camera Head: Fits small access points while inspecting DN80–DN600 pipelines, ideal for tight bends and heavy root intrusion.
• HD 1080p Imaging: Crystal-clear visuals with a 2.1 MP CMOS sensor and 140° wide-angle lens for detailed inspections.
• 9mm Fiberglass Cable: High-tensile, kink-resistant 9mm cable (10–200 m) with meter markings for precise defect location.
• Waterproof IP68 & Night Vision: Waterproof IP68 #304 stainless steel camera with 12 dimmable LEDs for clear imaging in dark or submerged conditions.
• 9-Inch HD Monitor: Vibrant 9-inch HD 1080p IPS monitor with a sun-visor for clear outdoor viewing.
• DVR Recording: Includes a 16GB TF card (expandable to 128GB) for capturing JPG snapshots and MP4 videos with time-stamped file names.
• Long-Lasting Battery: 12V 4500mAh Li-ion battery provides 6–9 hours of continuous use.
• Portable Design: Heavy-duty aluminum frame case with interchangeable skids for Ø200–Ø600 mm pipes and a brake-equipped cable reel.

Key Features

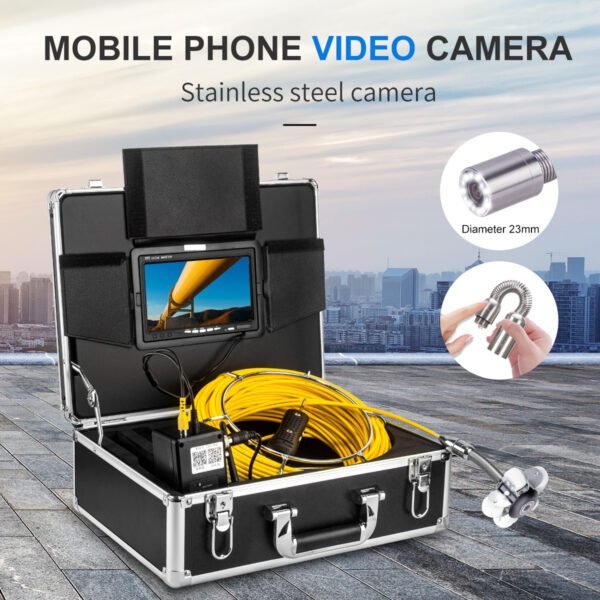

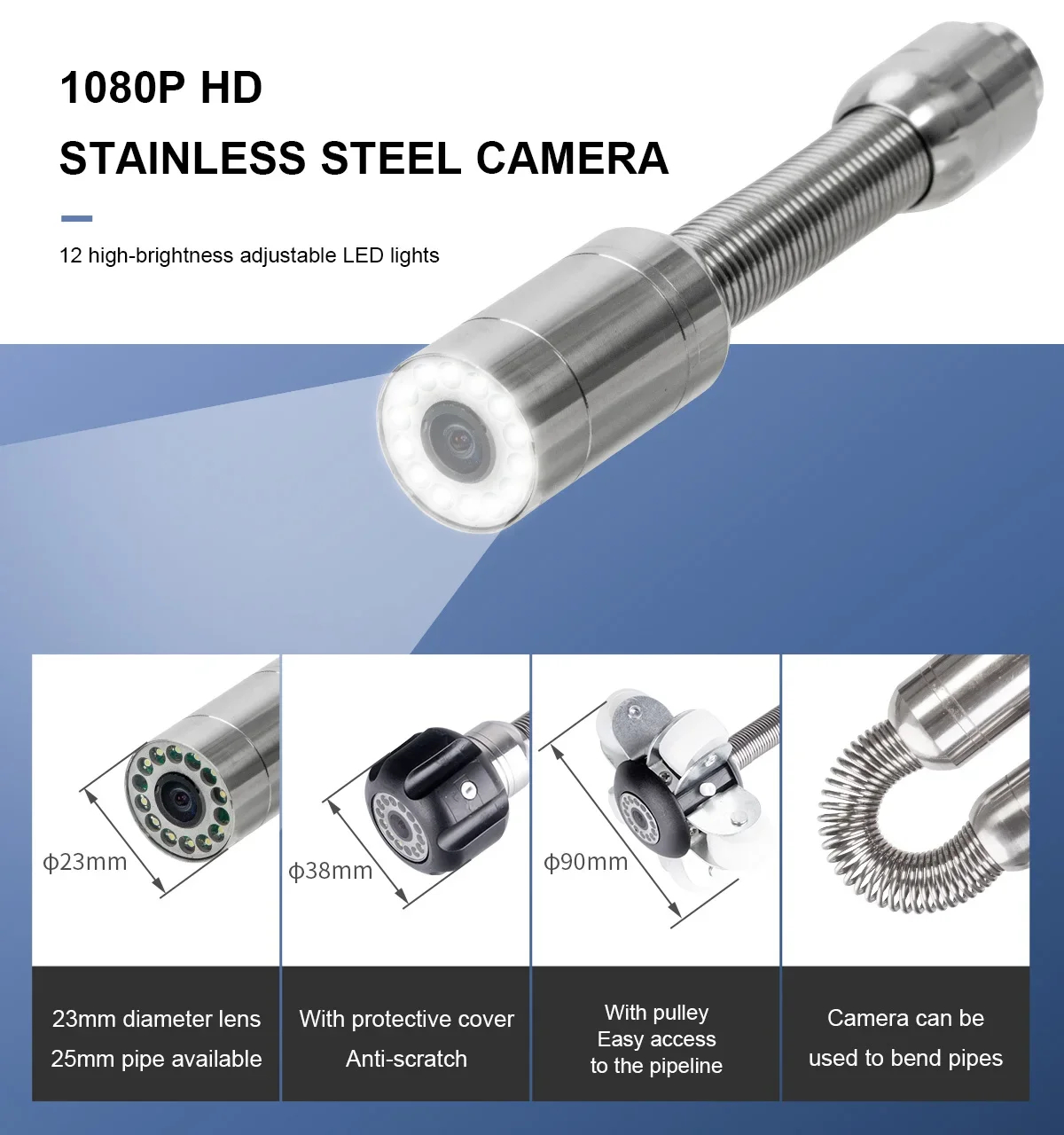

1. Ø23 mm Stainless-Steel Camera Head
   The sewer camera features a compact Ø23 mm × 125 mm #304 stainless steel camera head, perfect for navigating small access points and tight bends in DN80–DN600 pipelines. With a waterproof IP68 rating, it withstands submersion up to 1.5m for 30 minutes, and 12 adjustable LEDs ensure clear visuals in dark or turbid environments.

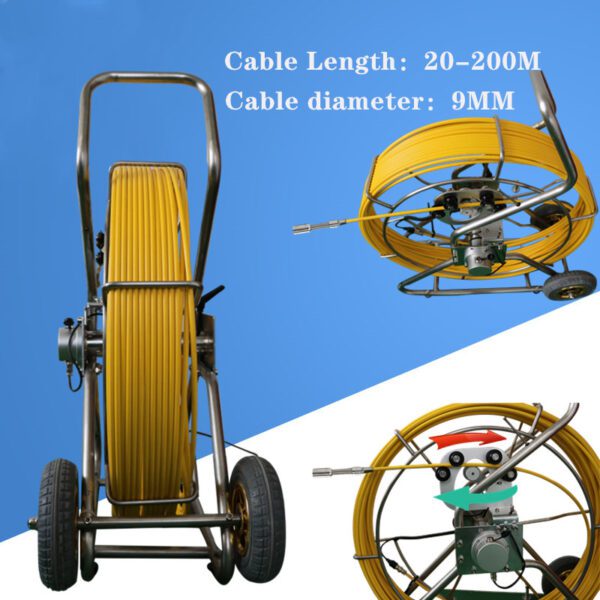

2. Durable 9mm Push-Cable
   The 9mm cable combines a high-tensile fiberglass core (≥200 kg strength) with a PE jacket, offering flexibility and kink-resistance for long-radius bends and vertical drops up to 60m. Meter markings every 1m make it easy to pinpoint defects in deep manholes or high-rise stacks with this drain inspection camera.
3. True HD 1080p Imaging
   Equipped with a 2.1 MP CMOS sensor and a 140° wide-angle lens, the sewer inspection camera delivers sharp, high-resolution color visuals, revealing cracks, root intrusion, grease build-up, or weld defects in pipelines.
4. Waterproof & Night Vision
   The waterproof IP68 camera head is submersible and paired with 12 dimmable LEDs (0–100% brightness), ensuring crystal-clear imaging in fully flooded or dark environments, making it ideal for sewer mains and storm-water culverts.
5. 9-Inch HD Monitor

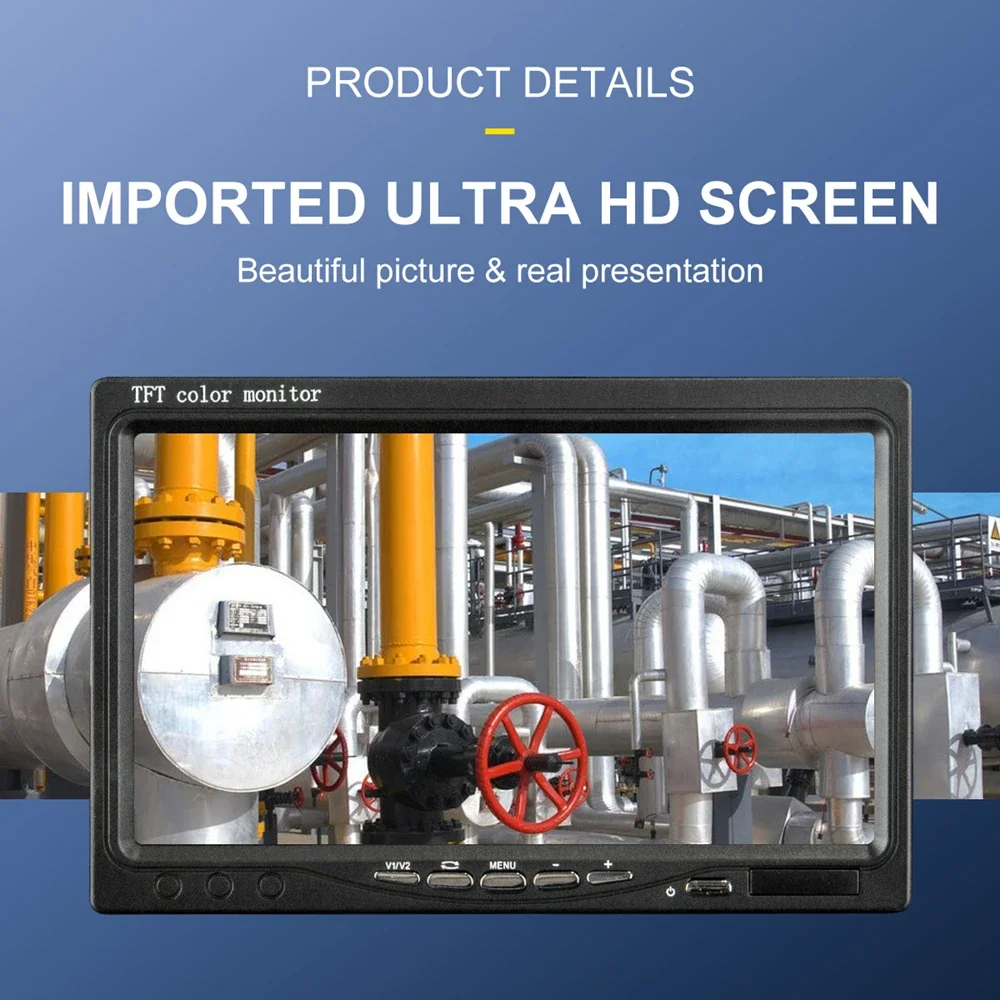

   The 9-inch HD 1080p IPS monitor (1000 cd/m² brightness) with an anti-glare sun-visor provides vibrant, real-time visuals, ensuring clear viewing during outdoor inspections with this drain camera.
6. DVR Recording & Documentation
   Capture inspections effortlessly with the built-in DVR and included 16GB TF card (expandable to 128GB). Record MP4 videos or JPG snapshots with on-screen distance overlays and time-stamped file names via the magnetically-attached back-lit keyboard.

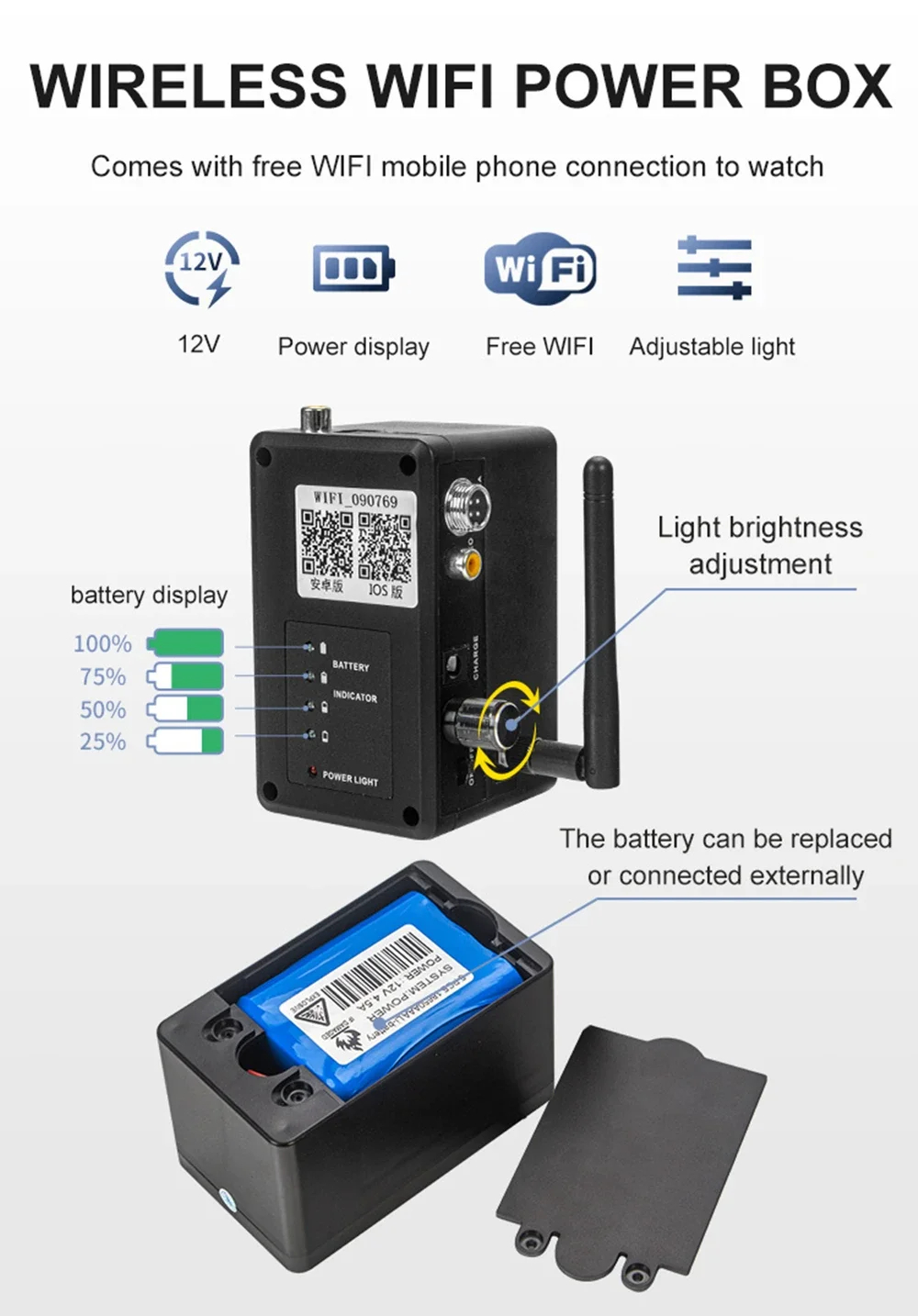

7. All-Day Power
   The 12V 4500mAh Li-ion battery powers 6–9 hours of continuous recording, perfect for full-day municipal surveys or industrial inspections without needing a recharge.

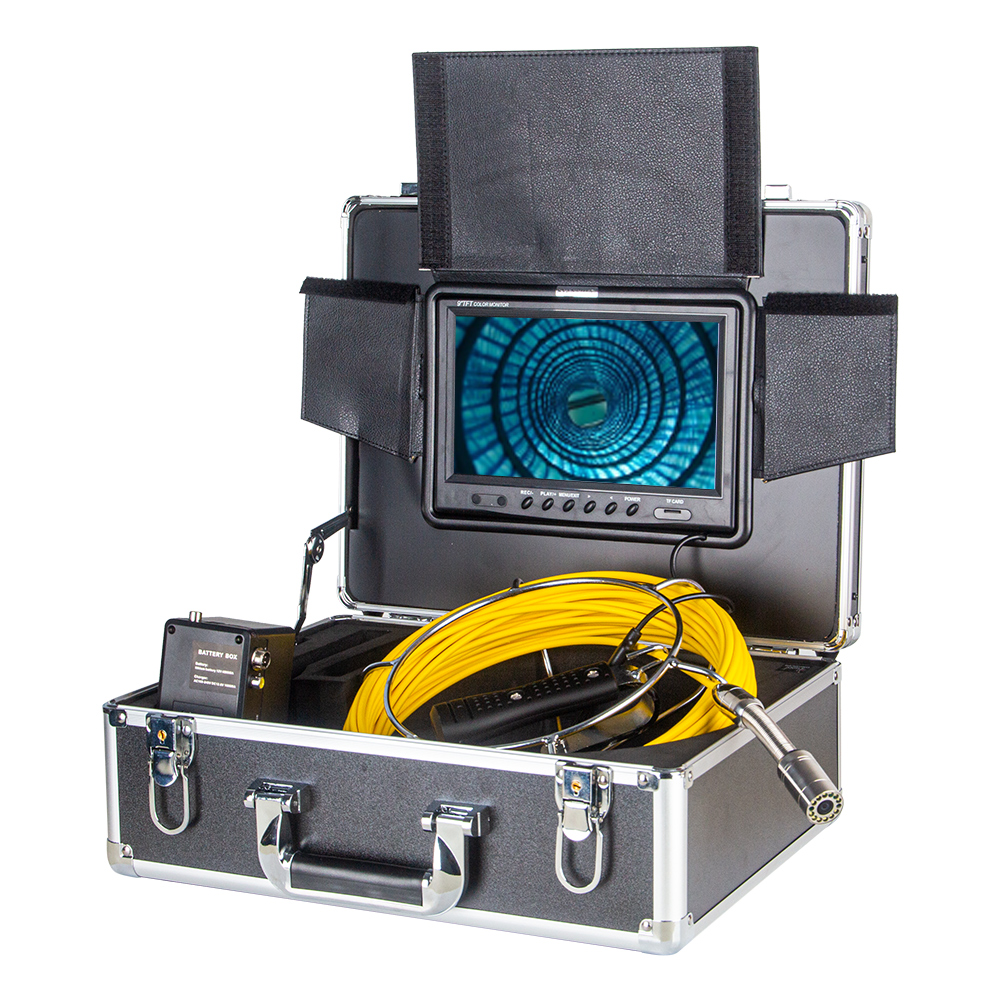

8. Professional Accessories

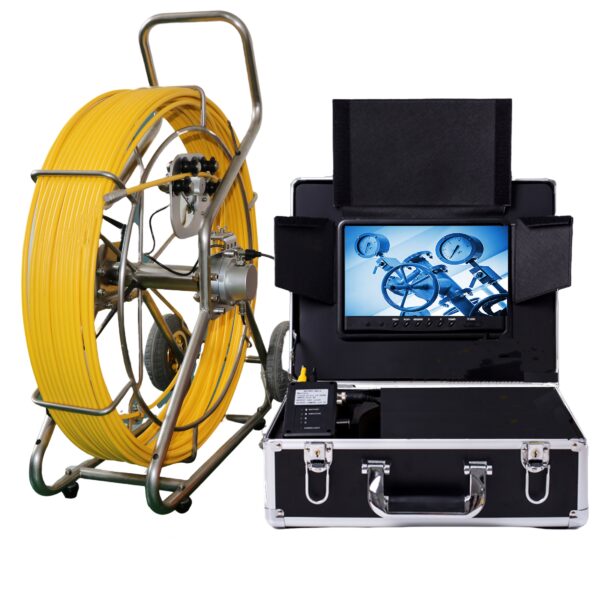

   The sewer inspection camera comes with a heavy-duty aluminum frame case, interchangeable skids for Ø200–Ø600 mm pipes, and a robust cable reel with a brake and counter for easy handling.

Typical ApplicationsThe SYANSPAN drain inspection camera is designed for a wide range of professional and residential uses, including:

• Municipal Pipelines: Inspect DN150–DN600 sewer mains and manhole risers for blockages, corrosion, or joint offsets.
• Industrial Pipelines: Survey DN250–DN500 petro-chemical transfer lines and power-plant condenser tubes.
• Storm-Water Systems: Examine highway and airport drainage galleries and culverts.
• High-Rise Drainage: Diagnose vertical rainwater stacks and building drainage risers up to 200m.
• HVAC & Residential: Check for mold, leaks, or structural issues in HVAC ducts, attics, or residential drain pipes.

Technical SpecificationsCamera Specifications

• Camera Head: Ø23 mm × 125 mm, #304 stainless steel
• Waterproof Rating: Waterproof IP68
• Resolution: HD 1080p (2.1 MP CMOS sensor)
• Viewing Angle: 140°
• Lighting: 12 adjustable white LEDs (0–100% dimming)
• Operating Temperature: –20 °C to 60 °C
• Storage Temperature: –20 °C to 60 °C

Cable Specifications

• Cable Diameter: 9mm cable (fiberglass core with PE jacket)
• Cable Length: 10–200 m (meter markings every 1m)
• Tensile Strength: ≥200 kg

Monitor & Recording

• Monitor: 9-inch HD 1080p IPS, 1000 cd/m² brightness, sun-visor
• Recording: DVR, 16GB TF card (supports up to 128GB)
• Input: Magnetically-attached back-lit keyboard

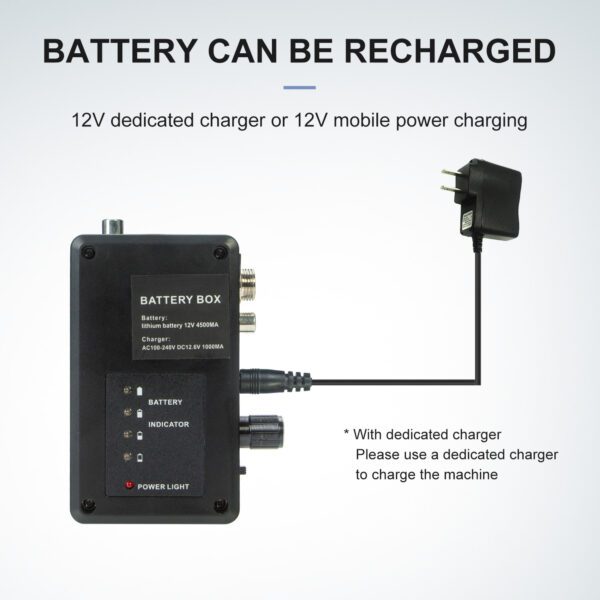

Power Supply

• Battery: 12V 4500mAh Li-ion
• Runtime: 6–9 hours
• Charger: AC100V–240V / DC12.6V 1000mA

Dimensions & Weight

• Package Size: 100 x 44 x 92 cm
• Product Net Weight: 36kg (20m cable)

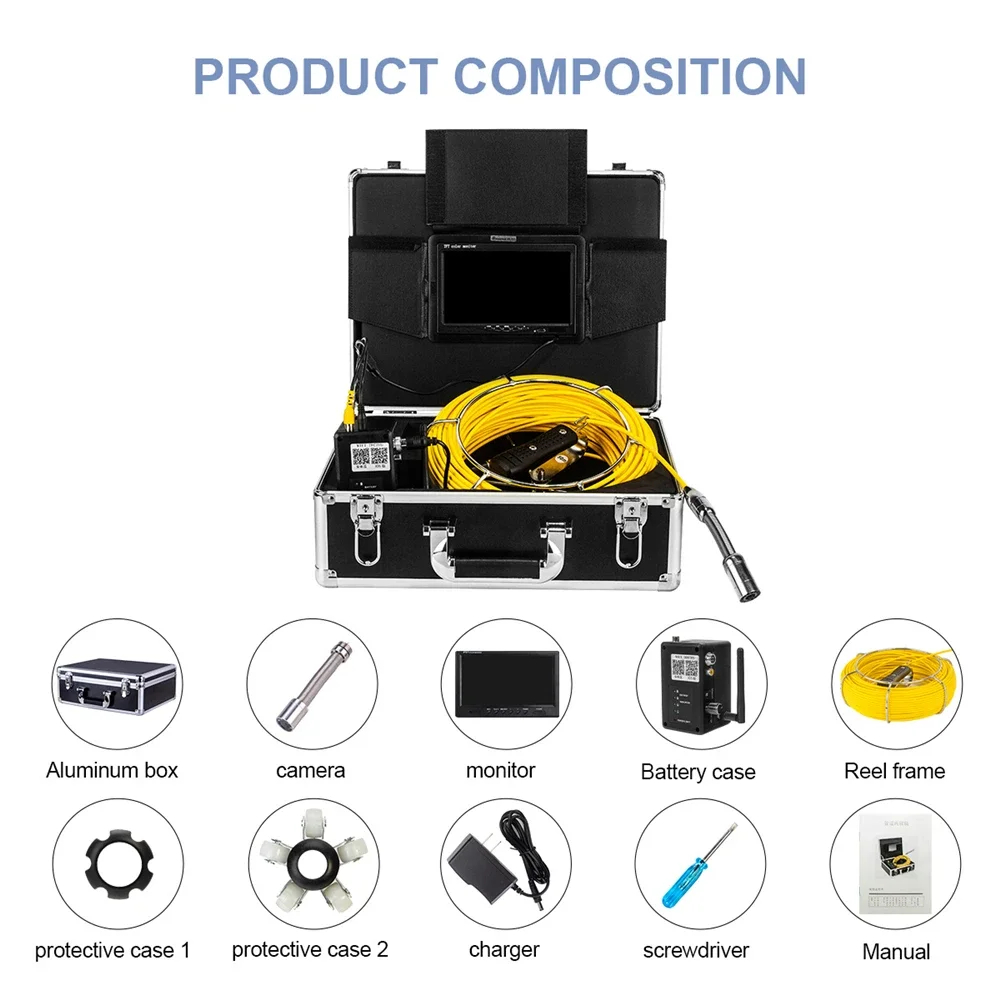

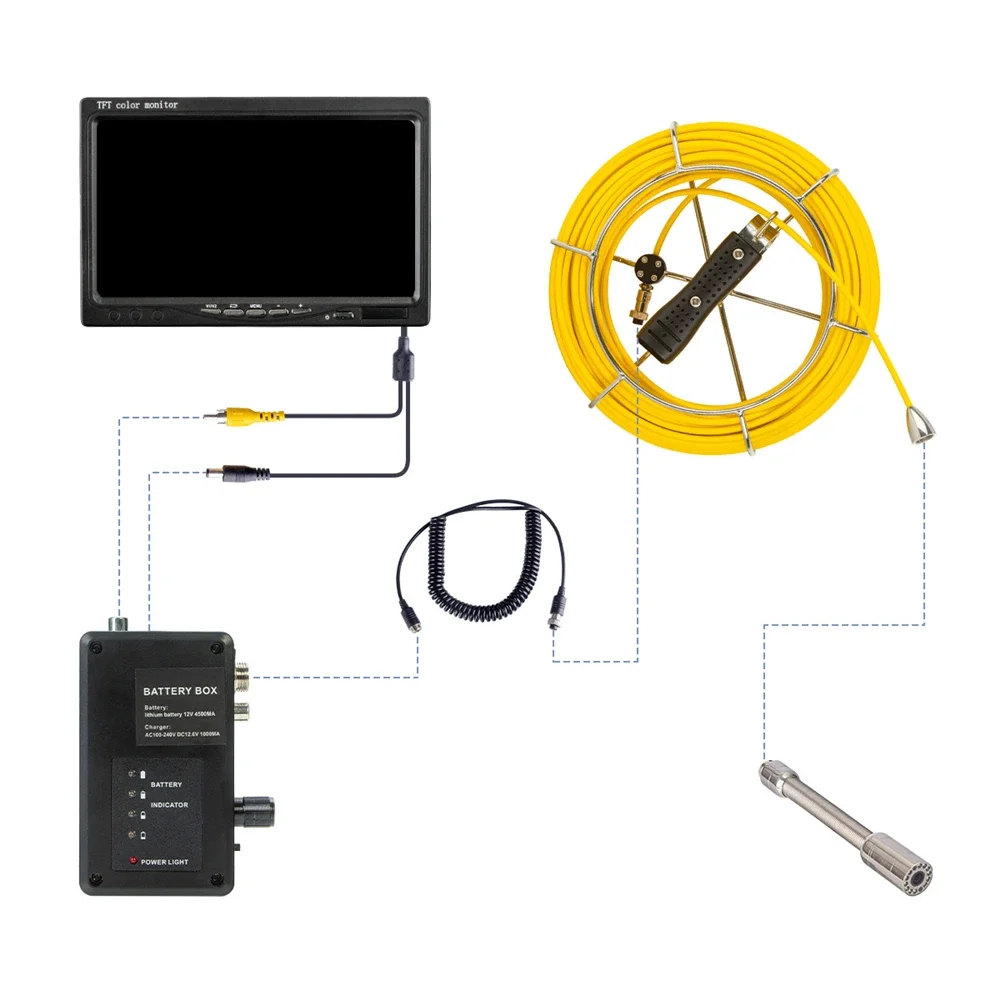

Package Contents

• 1 x Ø23 mm Camera Head
• 1 x 9-inch HD 1080p Monitor
• 1 x Sun-Visor
• 1 x 9mm Cable (10–200 m)
• 1 x Heavy-Duty Aluminum Frame Case
• 1 x Charger
• 1 x Cable Reel with Brake & Counter
• 1 x Screwdriver
• 2 x Camera Protectors
• Interchangeable Skids for Ø200–Ø600 mm Pipes

Why Choose SYANSPAN Sewer Camera?

• Precision Inspections: The Ø23 mm sewer camera navigates small access points and tight bends, eliminating the need for multiple entry holes or excavation.
• Professional-Grade Reliability: Trusted by plumbers, contractors, and municipal workers for inspecting large-diameter pipelines.
• Cost-Effective Maintenance: Affordable spare parts and a 1-year warranty ensure long-term usability.
• Portable & Durable: The heavy-duty aluminum case and waterproof IP68 design make this drain inspection camera ideal for rugged field use.
• Fast Support: Our dedicated customer service team is available for pre-order and after-sales assistance.

Q&AQ: What is the resolution of the SYANSPAN sewer camera?
A: The sewer camera features HD 1080p resolution with a 2.1 MP CMOS sensor, delivering crystal-clear visuals for detailed pipeline inspections.Q: Is the camera waterproof?
A: Yes, the drain camera has a waterproof IP68 rating, allowing submersion up to 1.5m for 30 minutes, perfect for wet or flooded environments like sewer mains.Q: What is the cable length, and can I choose different lengths?
A: The 9mm cable is available in lengths from 10m to 200m, with meter markings for precise defect location, customizable to your sewer inspection camera needs.Q: Can I record inspections with this drain camera?
A: Yes, the drain inspection camera includes a DVR with a 16GB TF card (expandable to 128GB) for recording MP4 videos and JPG snapshots with time-stamped file names.Q: How long does the battery last?
A: The 12V 4500mAh Li-ion battery provides 6–9 hours of continuous use, ideal for full-day inspections with the sewer camera.Q: What is the warranty for the SYANSPAN sewer inspection camera?
A: We offer a 1-year free repair warranty and lifetime maintenance support for the sewer inspection camera, with affordable spare parts available.Q: Can this camera be used in dark environments?
A: Absolutely! The drain camera is equipped with 12 adjustable LEDs (0–100% dimming), ensuring clear visuals in dark or submerged conditions.Q: How portable is the camera system?
A: The sewer inspection camera comes in a heavy-duty aluminum frame case, making it easy to transport and store securely.Q: What types of inspections is this camera suitable for?
A: The drain inspection camera is versatile, ideal for municipal sewer mains (DN150–DN600), industrial pipelines (DN250–DN500), storm-water culverts, high-rise drainage stacks, and HVAC ducts.Q: How can I get support or replacement parts?
A: Contact our dedicated customer service team for pre-order or after-sales support. Affordable spare parts are available for all SYANSPAN sewer cameras.

Buy Your SYANSPAN Sewer Camera Today!Streamline your pipeline diagnostics with the SYANSPAN Ø23 mm Ultra-Slim Sewer Inspection Camera. With its HD 1080p imaging, 9mm cable, and waterproof IP68 design, this sewer inspection camera delivers precision and durability for large-diameter pipelines. Avoid costly excavations and downtime by detecting blockages, corrosion, or leaks early with this professional-grade drain camera. Order now and benefit from our 1-year warranty, fast customer service, and affordable replacement parts. For pricing and subscription details, visit https://x.ai/grok. Our support team is ready to assist with any inquiries!
